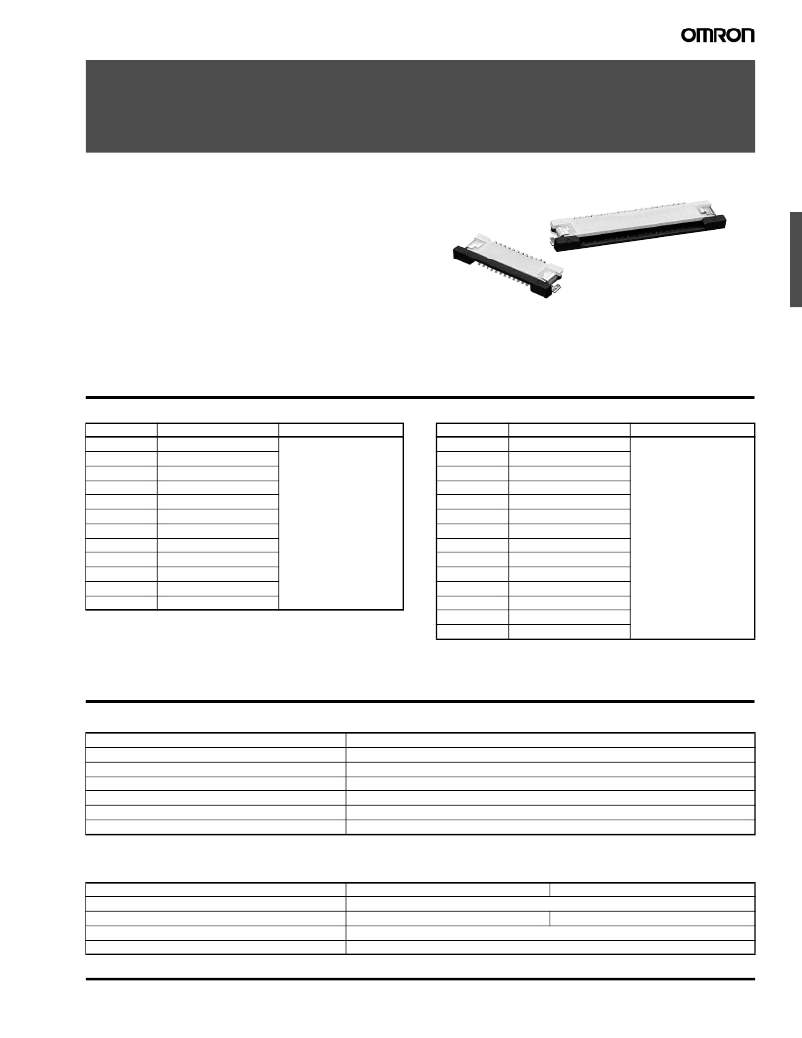

ZIF Slide-locking Connector (0.5-mm pitch)
XF2L
Greater Freedom of Board Design with
Smallest On-board Area in Industry
? Smallest on-board area and volume in the industry.
? Low on-board profile of only 1.2 mm max.
? Bottom wall prevents terminal exposure.
? Applicable FPC thickness of 0.3 mm.
? Halogen Free (See note)
Note: OMRON uses the following standard to determine halogen-
free construction: 900 ppm max. for Br, 900 ppm max. for Cl,
and 1,500 ppm max. for Br+Cl.
? RoHS Compliant.
Ordering Information
Upper Contact
Lower Contact
Pins
4
6
7
8
9
10
12
13
18
21
26
30
Model
XF2L-0425-1A
XF2L-0625-1A
XF2L-0725-1A
XF2L-0825-1A
XF2L-0925-1A
XF2L-1025-1A
XF2L-1225-1A
XF2L-1325-1A
XF2L-1825-1A
XF2L-2125-1A
XF2L-2625-1A
XF2L-3025-1A
Qty per reel (See Note)
3,000
Pins
5
6
7
8
10
12
13
15
18
19
20
22
Model
XF2L-0535-1A
XF2L-0635-1A
XF2L-0735-1A
XF2L-0835-1A
XF2L-1035-1A
XF2L-1235-1A
XF2L-1335-1A
XF2L-1535-1A
XF2L-1835-1A
XF2L-1935-1A
XF2L-2035-1A
XF2L-2235-1A
Qty per reel (See Note)
3,000
Note: Please order by integer multiple of the quantity per reel.
Ratings and Specifications
■ Characteristics
24
30
XF2L-2435-1A
XF2L-3035-1A
Rated current
Rated voltage
Contact resistance
Insulation resistance
Withstand voltage
Insertion tolerance
Ambient operating temperature
0.5A AC/DC
50V AC/DC
30 m Ω max. (at 20 mV DC max., 100 mA max.)
100 M Ω min. (at 250 VDC)
250 VAC for 1 min. (leakage current: 1 mA max.)
20 times
-30 to 85 ° C (with no icing or condensation)
■ Materials and Finish
Model XF2L - Upper contact type XF2L - Lower contact type
Housing
Slider
Contacts
Hold-down
LCP resin (UL94V-0)/natural
LCP resin (UL94V-0)/black LCP resin (UL94V-0)/brown
Spring copper alloy/nickel substrate (2 μ m), Gold-plated contacts (0.15 μ m)
Spring copper alloy/fused-tin plating (1.5 μ m)
ZIF Slide-locking Connector (0.5-mm pitch)
XF2L
33
